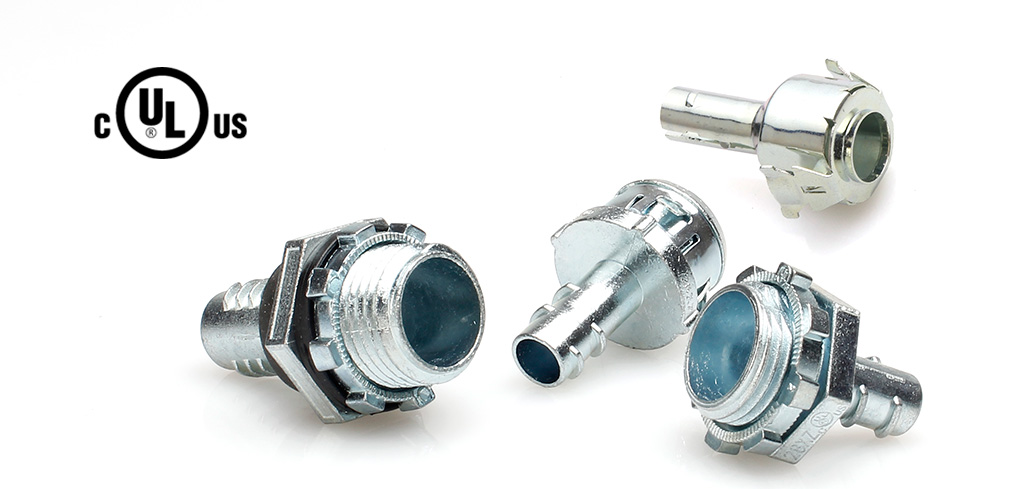

Bx-Flex Conduit Fitting, Set In Type

Bx-Flex Conduit Fittings, Set In Type, are applied on the relay or end point of wiring system to connect metal conduits, junction box or enclosure for wiring extension and protection. This series of fitting is proposed to fit with metal flexible conduit series PRWG and PRWA.

S16 series, Snap-in type, is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The body is made of zinc alloy with RoHS compliance. The fitting is pushed to fix to the knockouts of junction box and connected with metal flexible conduit by screwing in.

S17 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The body is made of zinc alloy with RoHS compliance. The fitting is fixed to the knockouts of junction box or tapped entries by locknut with external NPS thread system and connected with metal flexible conduit by screw in.

S30 series, Snap-in type, is certified by UL laboratory according to UL514B standard. The fitting is applied on the lighting fixture to connect the metal flexible conduit and lampshade or rectifier to protect wires. The body is made of steel 65MN with RoHS compliance. The fitting is pushed to fix to the knockouts of junction box and connected with metal flexible conduit by screwing in.
