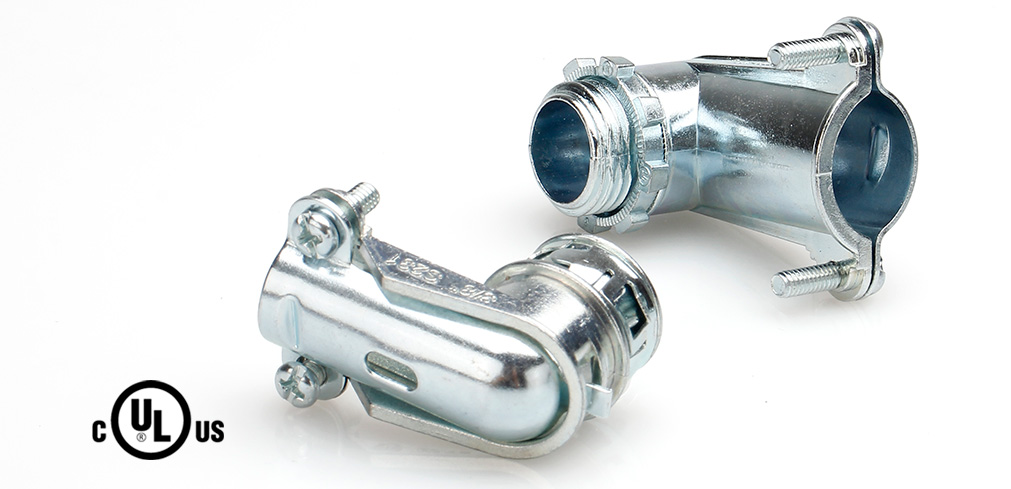

Bx-Flex Conduit Fitting, 90 Degree Squeeze

Bx-Flex Conduit Fittings, 90 Degree Squeeze, are applied on the relay or end point of wiring system to connect metal conduits, junction box or enclosure for wiring extension and protection. The body is made of zinc alloy with RoHS compliance. This series of connector is designed to 90-degree elbow that is particularly applicable for limited space where the wiring system ended to a junction box or enclosure. This series of connector is proposed to fit with metal flexible conduit series PRWG and PRWA.

S22 series is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The squeeze connector is fixed to the knockouts of junction box or tapped entries with external NPS thread system by locknut and connected with metal flexible conduit by squeezed the cover with two screws.

S23 series, Snap-in type, is certified by UL laboratory according to UL514B and Canadian CSA-C22.2 No.56 standard. The squeeze connector is pushed to fix to the knockouts of junction box and connected with metal flexible conduit by squeezed the cover with two screws.
