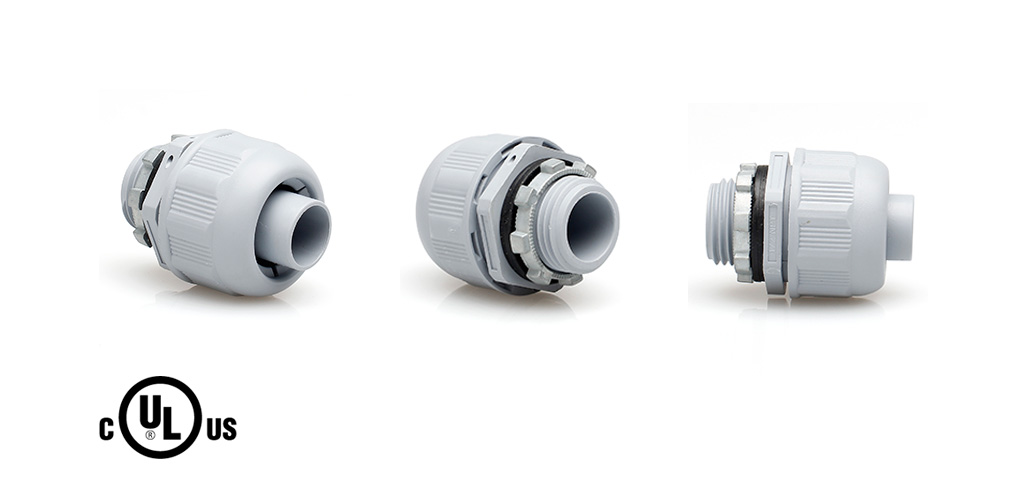

Liquid Tight Non-Metallic Flexible Conduit Fitting, Quick Type, Straight Type
Liquid Tight Non-Metallic Fitting, Quick Type, PP60 series is applied on the relay or end point of wiring system to connect flexible conduits, junction box or enclosure for wiring extension and protection. The body is made of PP with RoHS compliance. The fitting is fixed to the junction box or tapped entries by locknut with male NPT thread system and connected with flexible conduit by a nut. The compact structure of this fitting offers feature of moisture and water seal to protect the wiring system. Because fire retardant and resistance of low temperature, corrosion, oil and UV, this series of fitting is benefit to apply to indoor or outdoor environments after assembled with the liquid tight flexible conduit series PLFNCB, PLFNCB2, PULTG, PCULTG, PCBLTG, PHLTG and PNKLTG.
Feature
-
Material:
PP -
Color：
Grey (Standard), other colors are available by consult. -
Temperature Range :
-18℃~+60℃ -
IP Rating :
IP 68 -
Nuts
Metallic nuts is optional. -
Certificate :
cULus (File No.: E256570)
Parameter
| Nominal Conduit Size | Nominal Conduit Size | NPT Thread | Part Number | Package/Box (Pcs) | Weight/Box (Kg) | Certificate | Mated With |
|---|---|---|---|---|---|---|---|
| 12 | 3/8 | 1/2" | PP601-3/8 | 400 | 7.6 |  |  |
| 16 | 1/2 | 1/2" | PP602-1/2 | 360 | 7.4 | | |
| 21 | 3/4 | 3/4" | PP603-3/4 | 300 | 9 | | |
| 27 | 1 | 1" | PP604-1 | 160 | 8.5 | | |
| 35 | 1-1/4 | 1-1/4" | PP605-1-1/4 | 80 | 6.5 | | |
| 41 | 1-1/2 | 1-1/2" | PP606-1-1/2 | 60 | 6.6 | | |
| 53 | 2 | 2" | PP607-2 | 50 | 7 | | |
