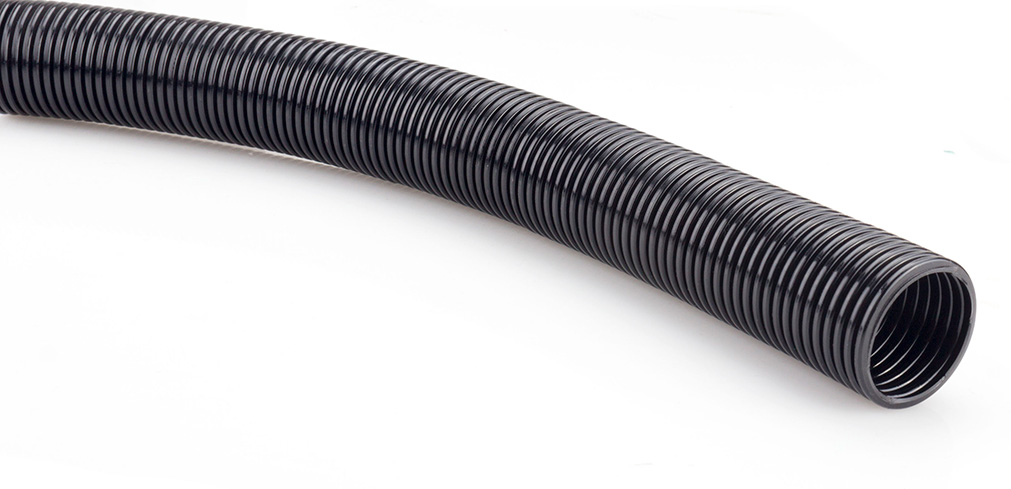

Non-metallic Robot Protection Tubing, Super Flexible Type, TPEE (Non-FR)
Non-metallic Robot Protection Tubing, TPEE Super Flexible Corrugated Conduit - TPFE Series, is made of TPEE in corrugated shape. The designed for robots that always need to repeat the same action for a long period. The ultra-flexible plastic conduit is applied for protection of power, signal, fiber optics and etc. used on robots.
The ultra-flexible plastic conduit has high flexibility, bending resistance, wear resistance, long-term fatigue resistance, and long service life, allowing the robot to continue to operate as long as possible and maintaining the stability and efficiency of production.
The ultra-flexible plastic conduit is also applicable to the environment full of chemicals or in abnormal temperature, it still exerts protective function without being affected. That allows the robot to be applied for wider field of application. This type of flexible conduit is suitable for various industries where robots are commonly used, such as: automobile assembly line, spraying workshop, various types of industrial production lines and etc.
Feature
-
Material:
TPEE -
Temperature Range:
-30℃~+130℃ -
Flexibility :
Supreme (Swing test：2 mllion times) -
Flammability Rating：
No -
UV Resistance :
No -
Environmental Protection：
RoHs Compliance, Halogen Free -
Certificate：
No
Parameter
Non-Flame Retardant
| Nominal Conduit Size | Nominal Conduit Size | Part Number | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (m) | Measurement (LxWxH mm) | Mated With |
|---|---|---|---|---|---|---|---|---|
| 28 | 3/4 | TPFENA-28 | 22.6±0.30 | 28.2±0.30 | 50 | 50 | 500*500*300 | - |
| 34 | 1 | TPFENA-34 | 28.6±0.4 | 34.2±0.4 | 70 | 25 | 550*550*200 | - |
| 42 | 1-1/4 | TPFENA-42 | 35.2±0.4 | 42.0±0.4 | 100 | 25 | 450*450*280 | - |
| 54 | 2 | TPFENA-54 | 47.0±0.5 | 54.0±0.5 | 125 | 25 | 770*770*280 | - |
